Integrations |
| 💎 |
Save BCF to SharePoint/Teams |
Save BCF topic edits by overwriting with the latest changes. Requires Microsoft Teams IFC Viewer app and a linked BCF file from SharePoint/Teams. |
| 💎 |
Save Excel to SharePoint/Teams |
Save the selected element properties as an Excel file to SharePoint/Teams. If a file for this query already exists, saving will update it with the latest data. Requires Microsoft Teams IFC Viewer app. |
| ✅ |
View IFC files in SharePoint |
View your IFC files directly in SharePoint. Requires Microsoft SharePoint IFC Viewer app. |
| ✅ |
Embed IFC Viewer in SharePoint |
Embed your IFC files in SharePoint pages as a webpart to view your IFC files directly. Requires Microsoft SharePoint IFC Viewer app. |
| ✅ |
View IFC files in Teams |
View your IFC files directly in Microsoft Teams. Requires Microsoft Teams IFC Viewer app. |
| ✅ |
View BCF files in Teams |
View your BCF files directly in Microsoft Teams. Requires Microsoft Teams IFC Viewer app. |
| ✅ |
Link documents |
Link and access relevant documents based on your model selection to instantly view associated files from your SharePoint/Teams. Requires Microsoft Teams IFC Viewer app. |
IFC |
| ✅ |
Search elements |
Search element IFC classes or their Pset properties, such as “List all doors with fire resistance rating.” For general searches, results will match based on both the Pset property name and its value. |
| ✅ |
Search elements |
Search by IFC classes and properties (property set names, property names and property values). |
| ✅ |
Download Excel to Computer |
Download the selected IFC element properties as an Excel file. |
| ✅ |
Download IFC to Computer |
Download only the selected elements as a new IFC file. |
| ✅ |
View model details |
Toggle to show or hide IFC model details. |
| ✅ |
Open IFC from Computer |
Supports IFC 2x3, IFC 4 and IFC 4x3. The file remains local and is never uploaded to a server. |

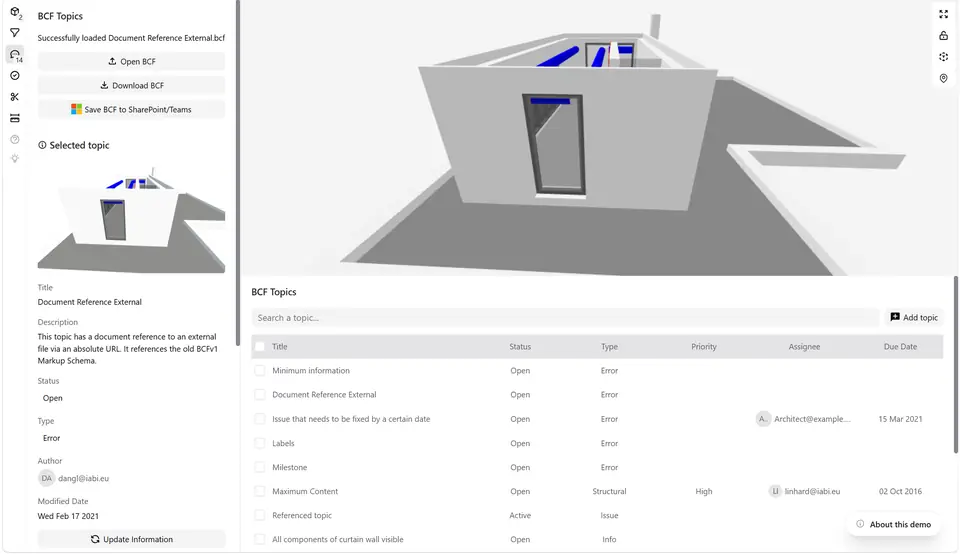

BCF |
| ✅ |
Add new BCF topic |
Add a new BCF topic and assign the current viewpoint. |
| ✅ |
Download BCF to Computer |
Download all topics as BCF file. |
| ✅ |
Open BCF from Computer |
Supports BCF 2.1, BCF 3 and Navisworks 2025 XML clash report. The file remains local and is never uploaded to a server. |
Other Features |
| ✅ |
Download current IDS filter |
Download current filter as IDS file. |
| ✅ |

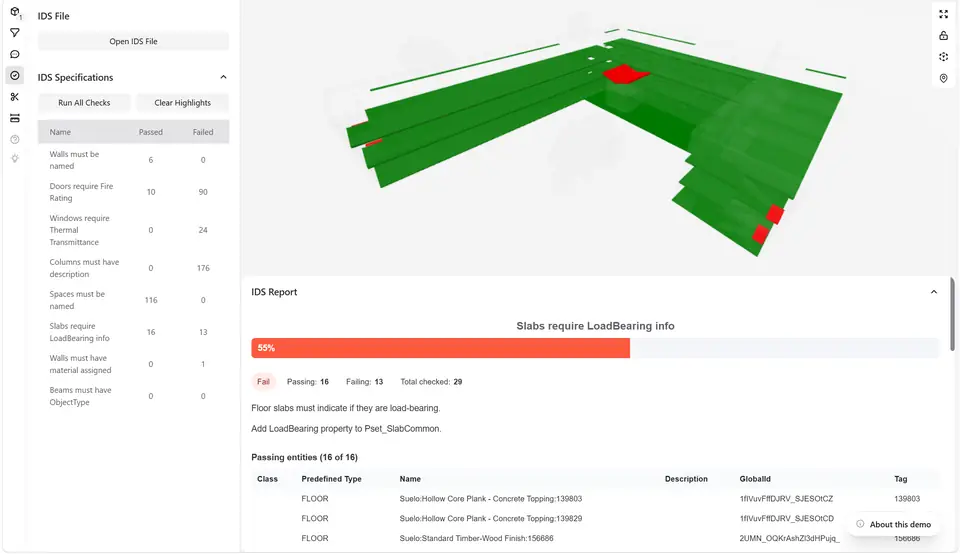

Open IDS from computer |
Use the IDS standard for defining filters. |
| ✅ |
Full Screen |
Full Screen |
| ✅ |
Fit Model |
Center and zoom the model to fit the view. |
| ✅ |
Lock Camera |
Prevent any camera movement or rotation. |
| ✅ |
Clipping planes |
Create one or more clipping planes to hide parts of the model. |
| ✅ |
Measurement tools |
Create edge, face, volume, length or area measurements. |
| ✅ |

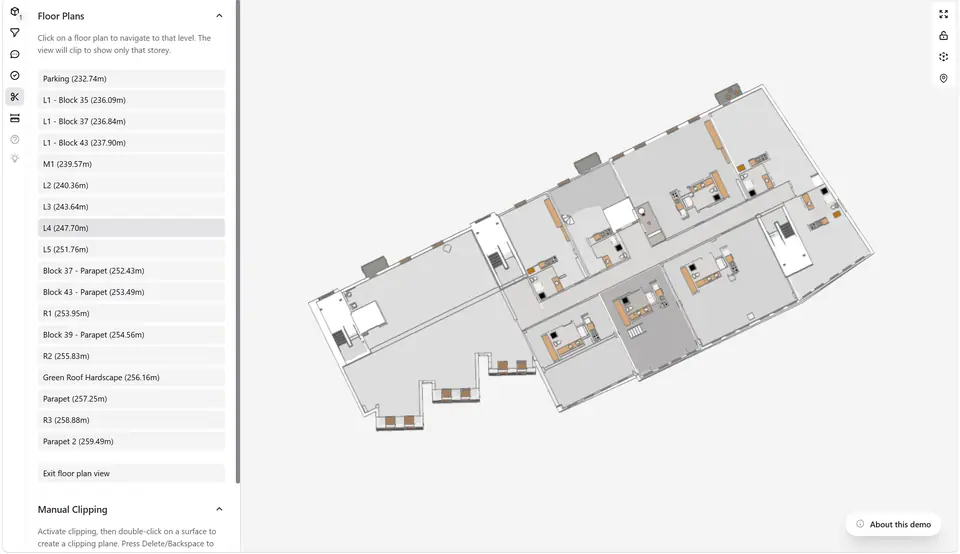

Show floor plans |
Activate the floor plan view to show floor plans of the model. |
